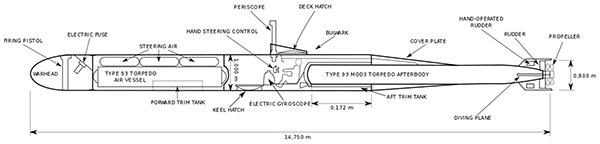

Schematic of Kaiten Type 1 manned suicide torpedo
Indicated is the warhead, firing pistol, electric fuse, Type 93 torpedo air vessel, steering air, forward trim tank, keel hatch, electric gyroscope, hand staring controls, periscope, deck hatch, aft trim tank, type 93 mod 3 torpedo afterbody, cover plate, diving plane, hand operated rudder, rudder and propeller. Length 14.75m height .8m
Credit: Wikipedia via Lakkasuo Date: September 4, 2010
Drawing
